roller

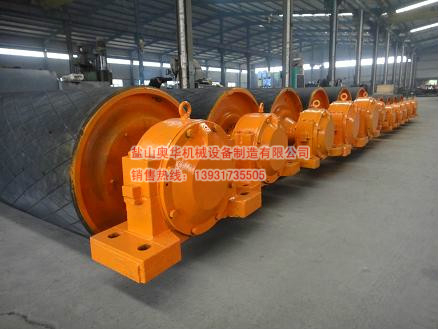

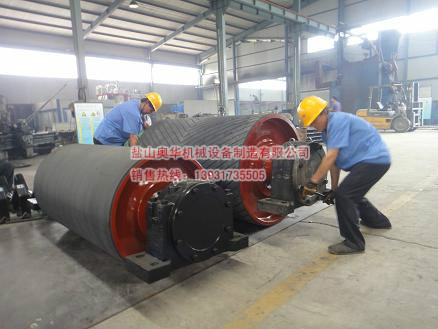

Casting drum

order

Width (mm) Drum diameter range (mm) Can withstand the force (KN)

500 250-500 6-49

650 250-630 6-70

800 250-1000 6-330

1000 250-1000 6-430

1200 250-1400 6-650

1400 315-1400 17-980

1600 630-1600 200-1280

1800 630-1600 200-1440

2000 630-1800 250-1600

2200 630-1800 280-1760

2400 630-1800 300-1760

【Application】: Applicable to machinery, metallurgy, mining, port, chemical and pharmaceutical, cement, building materials, steel, coal, etc .; is a variety of mobile belt conveyor drive device can also be used for fixed belt conveyor.
