welcome~Yanshan Aohua Machinery Equipment Manufacture Limi

language selection：

∷

Roller group series

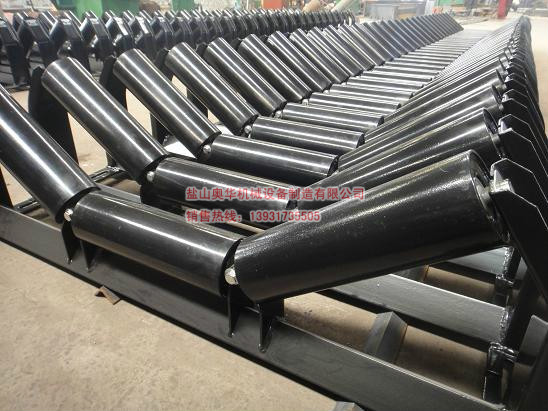

Groove roller group

order

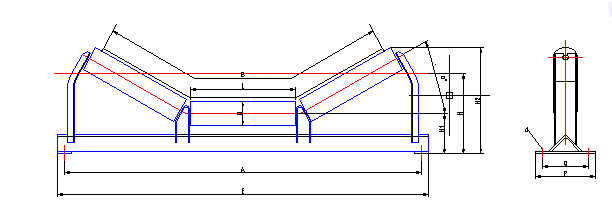

帶寬	輥?zhàn)?/td>			主要尺寸									重量 /kg
帶寬	D	L	軸承	A	E	C	H	H₁	H₂	P	Q	d	重量 /kg
650	89	250	6204	890	950	691	235	135.5	329	170	130	M12	17.1
650	108	250	6305	890	950	684	265	146	346	170	130	M12	21.3
800	89	315	6204	1090	1150	862	245	135.5	366	170	130	M12	22.1
	108		6305			855	270	146	385				26.7
	133		6305			841	305	159.5	408				33.2
1000	108	380	6305	1290	1350	1038	300	159	437	220	170	M16	38
	133		6305			1023	325	173.5	461				45.5
	159		6306			1020	370	190.5	491				57.1
1200	108	465	6305	1540	1600	1262	335	176	502	260	200	M16	50.5
	133		6305			1248	360	190.5	527				59.2
	159		6306			1244	390	207.5	556				72.4
1400	108	530	6305	1740	1810	1433	350	184	548	280	220	M16	56.2
	133		6305			1419	380	198.5	573				65.6
	159		6306			1415	410	215.5	602				87.8
1600	133	600	6305	1990	2060	1603	430	205	619	300	240	M16	85.3
	159		6306			1598	460	220	646				100.8
	194		6308			-	-	-	-
1800	133	670	6305	2190	2260	1788	455	215	669	300	240	M16	98.3
	159		6306			1784	485	230	696				114.8
	194		6308			1784	525	255	739				152.3
2000	133	750	6305	2420	2490	1999	460	215	715	300	240	M16	107.1
	159		6306			1995	500	230	742				125.4
	194		6308			1995	540	255	785				165.9

上一個(gè)：Friction aligning roller group 下一個(gè)：Conical aligning roller group
